Flagship Sloping System
PPK/STD-201

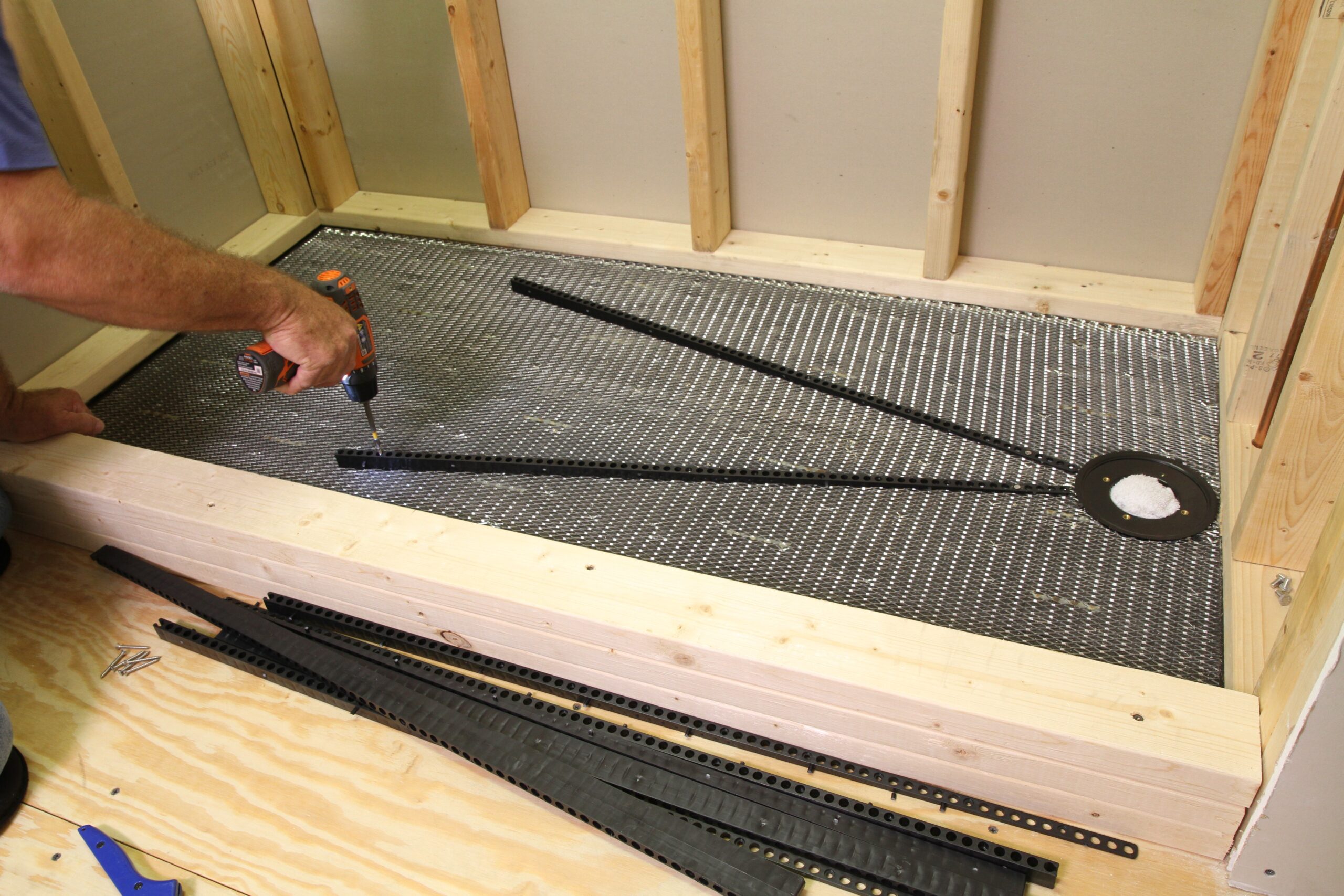

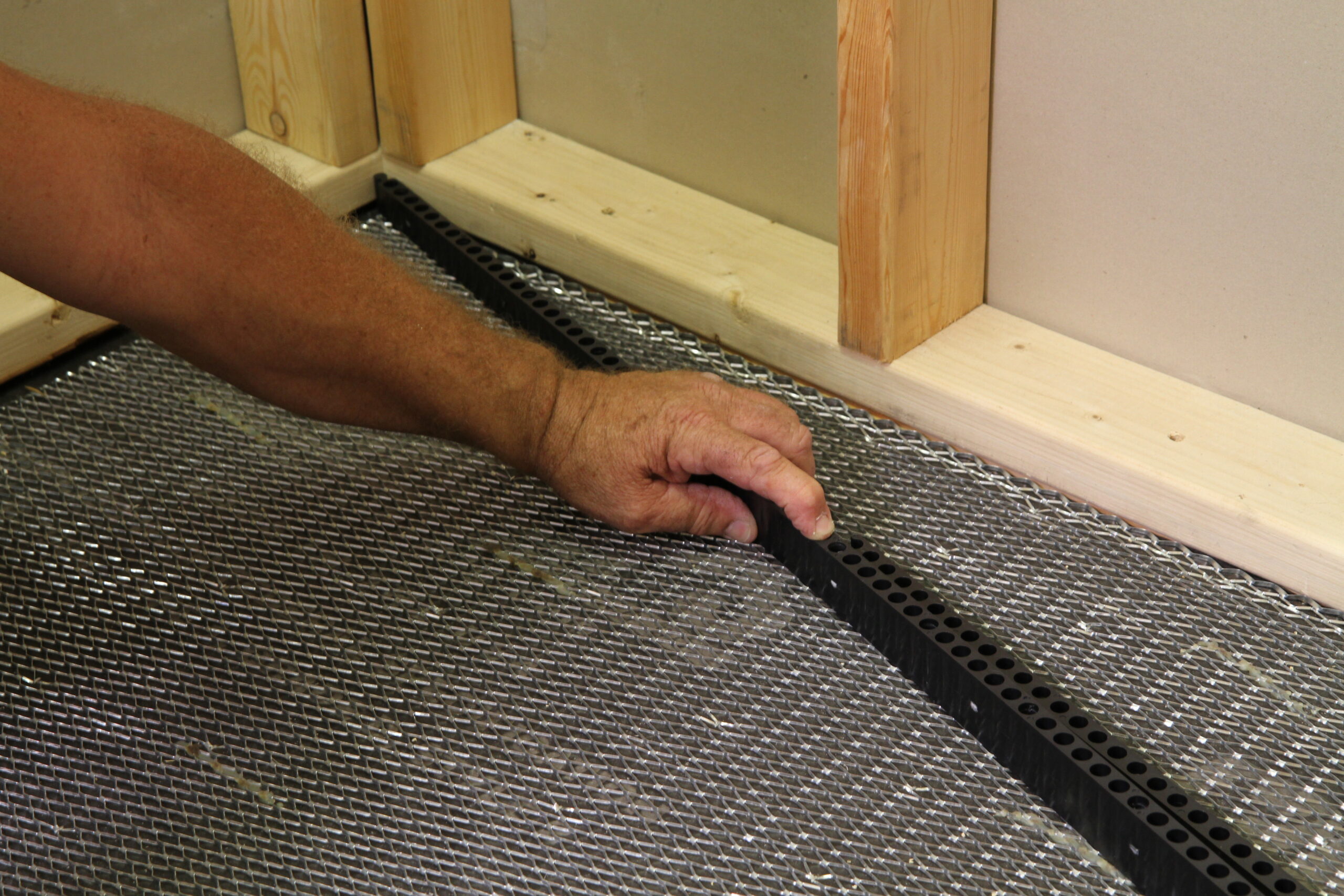

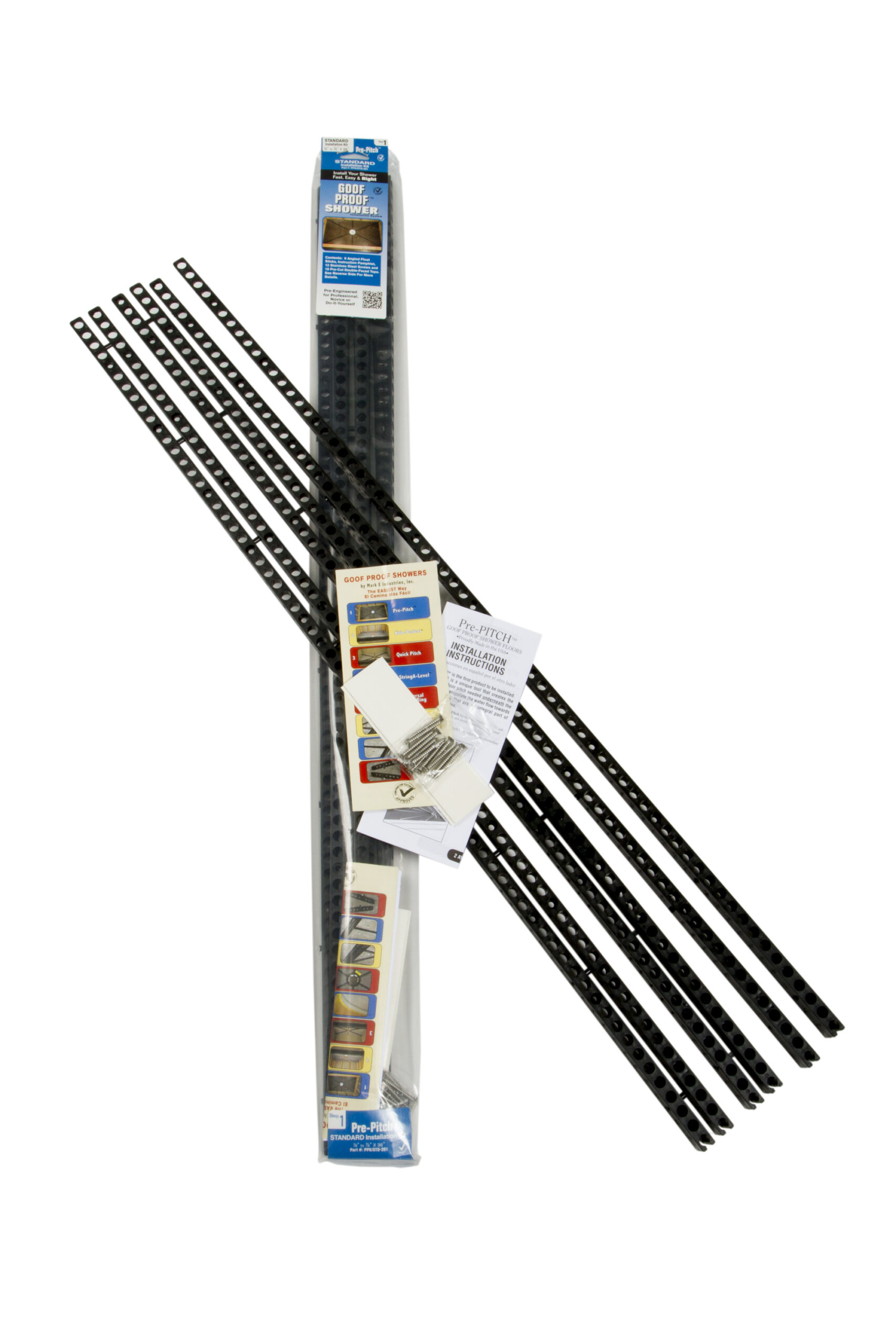

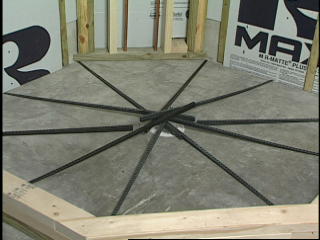

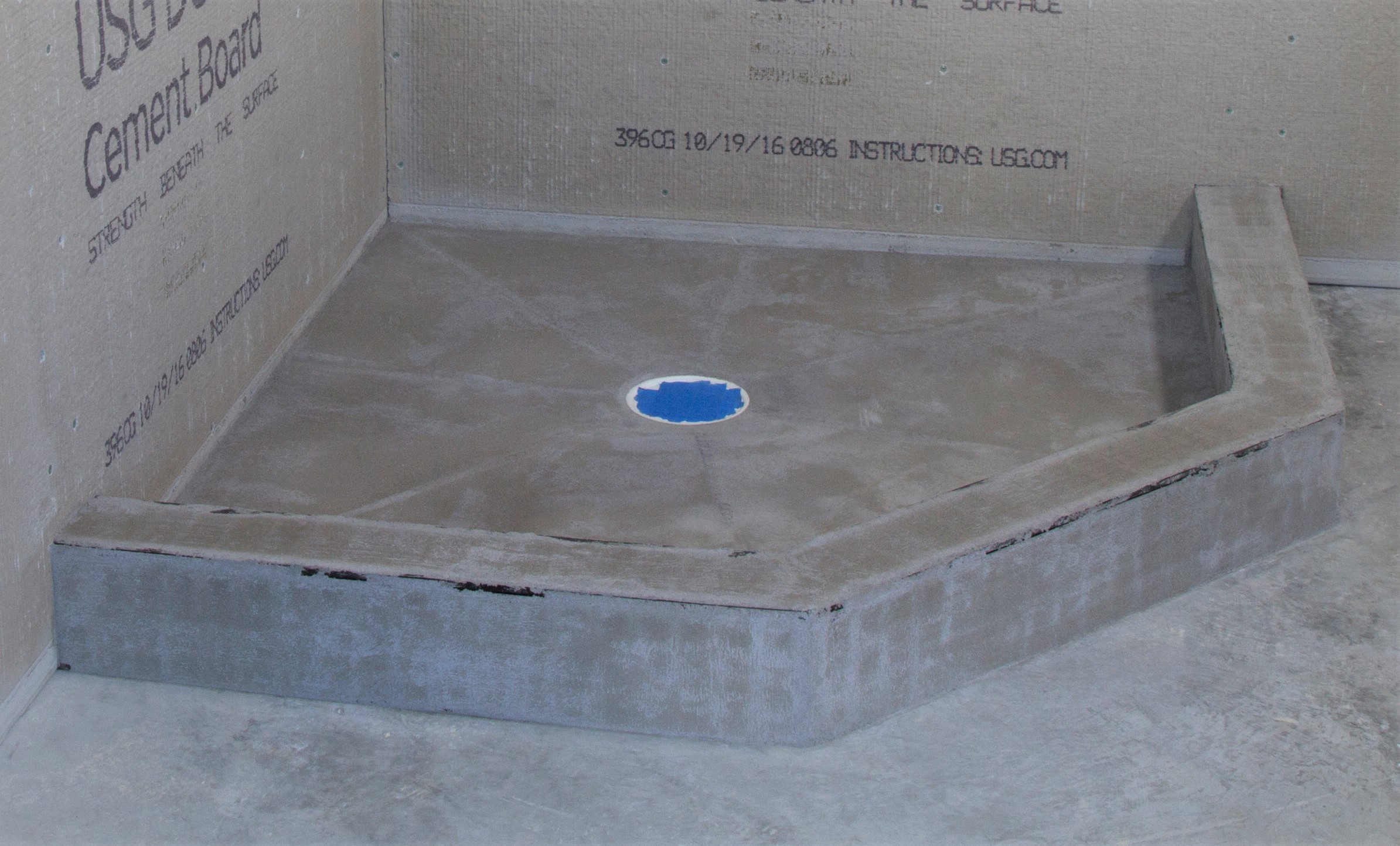

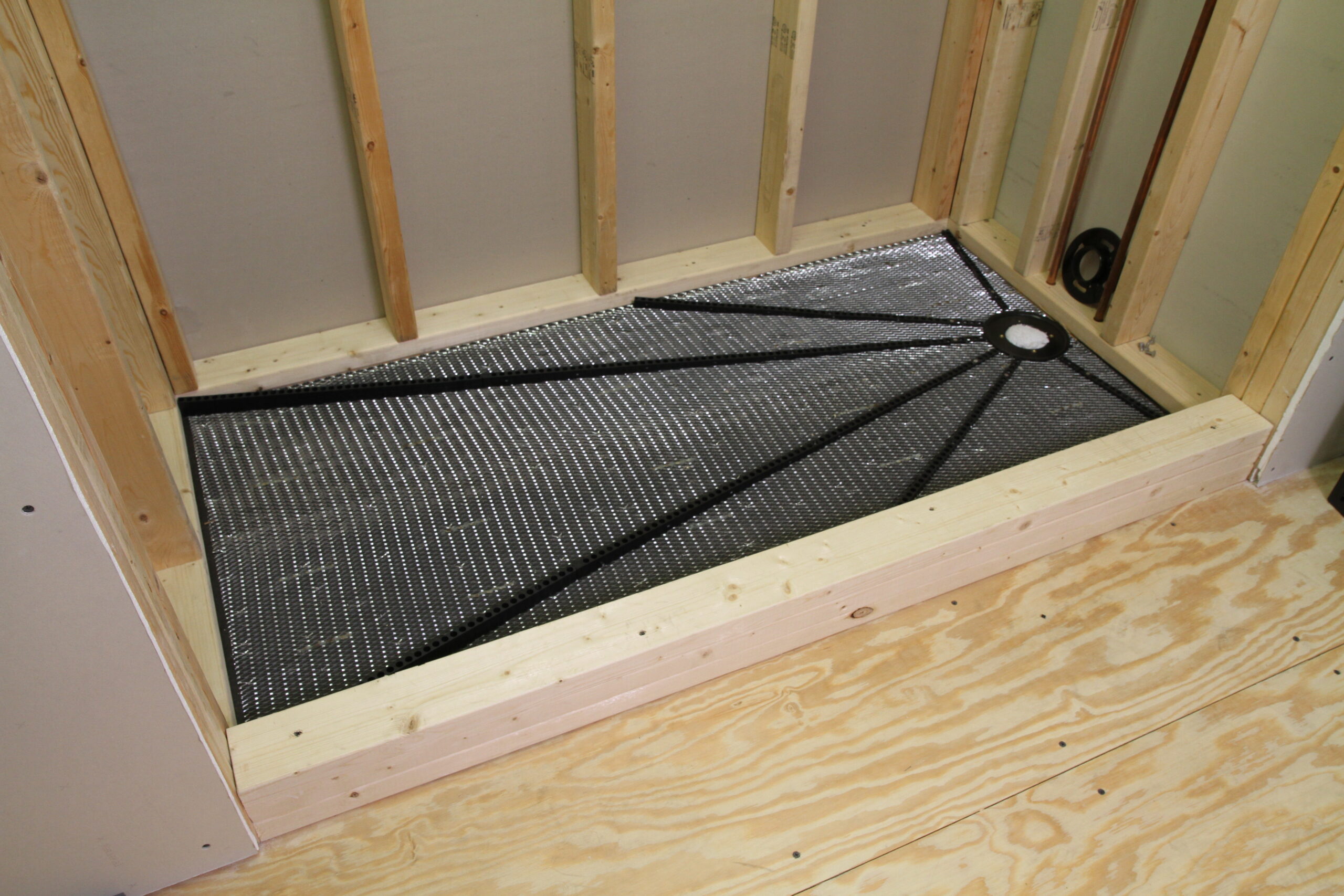

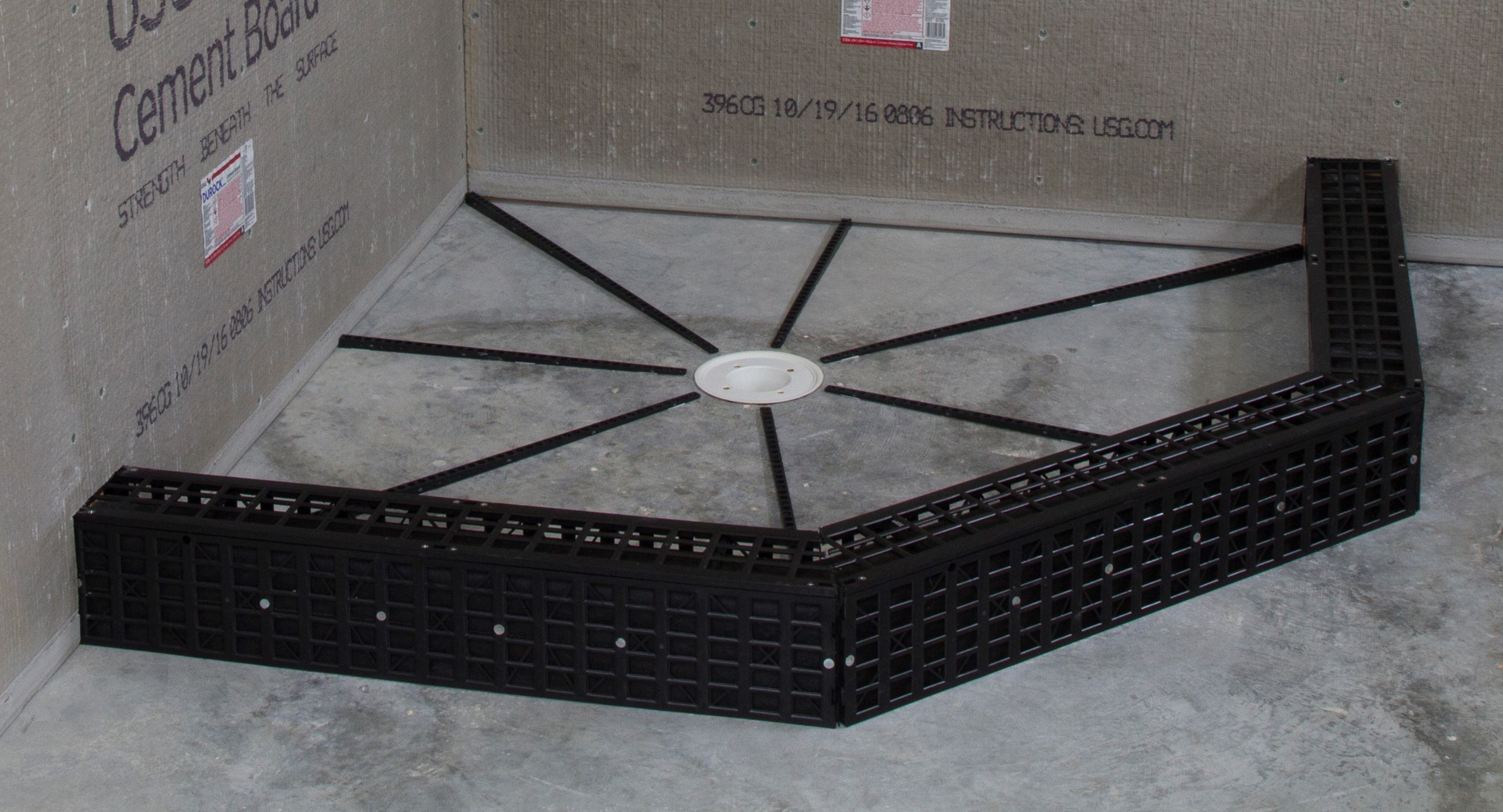

Pre-Pitch is a sloping guide tool that creates a code compliant, subfloor pitched mudbed used underneath pan liner material to direct water flow towards the weep holes that are an integral part of all shower floor drains. Pre-Pitch can be used with roll-on liquid waterproofing and for creating thin-bed type foundations when using sheet membranes for water control. For standard shower subfloor areas with a centered drain or when the drain is within 36 in. of any wall or curb. Each stick measures 1/8 in. to 7/8 in. tapered x 36 in. length. Sold 6 per package. Screws, 2-sided tape and complete instructions included.
- Creates the proper subfloor pitch ensuring pan liner drainage
- Molded of high impact plastic with a reinforcing design that is lightweight and non-rotting; used on both wood and concrete subfloors
- Built-in pitch forms the perfect subfloor slope needed without possessing the necessary skills required
- Packaged with all the necessary hardware for swift and accurate installations
Available through dealers
In Stock
PPK/EXT-202

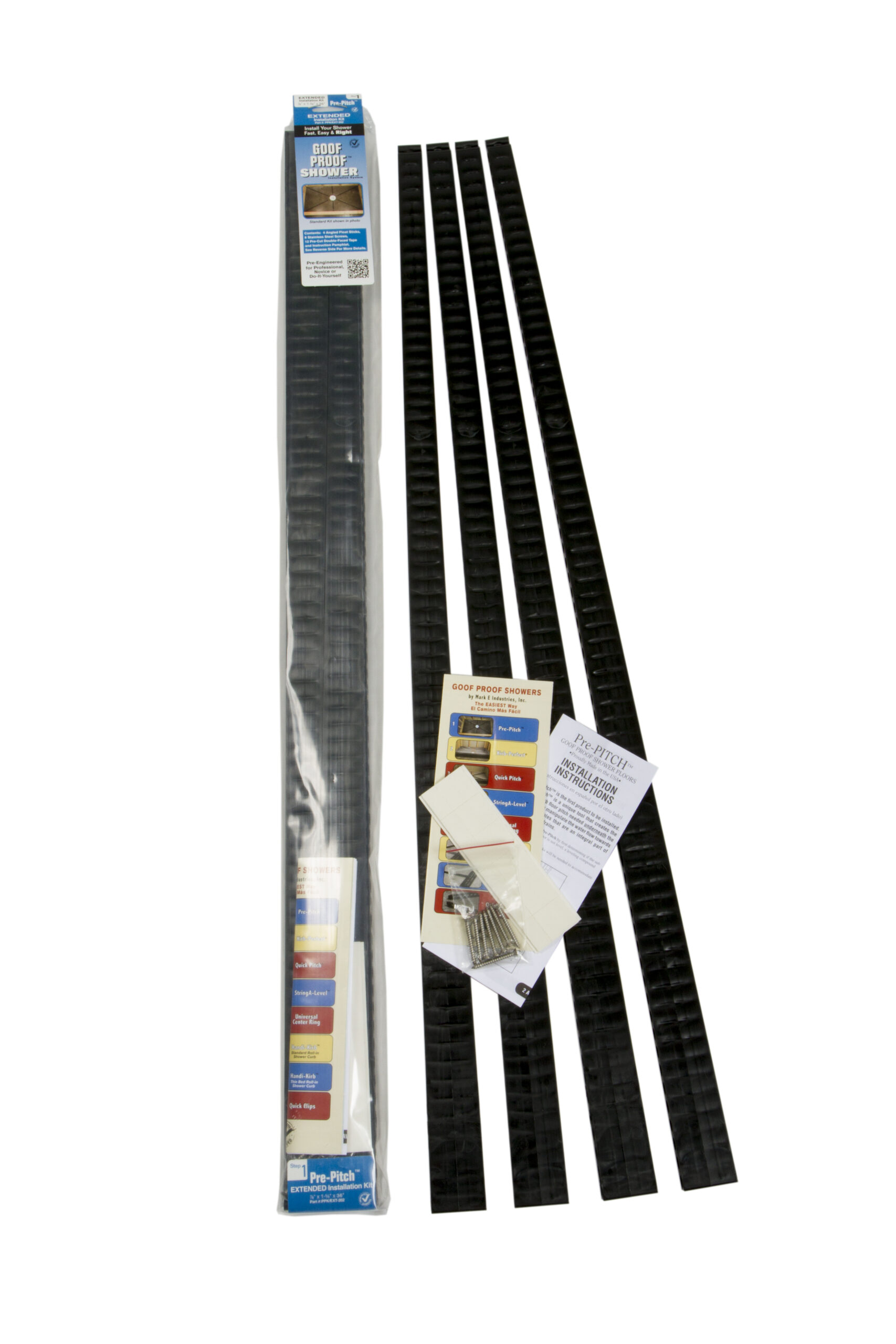

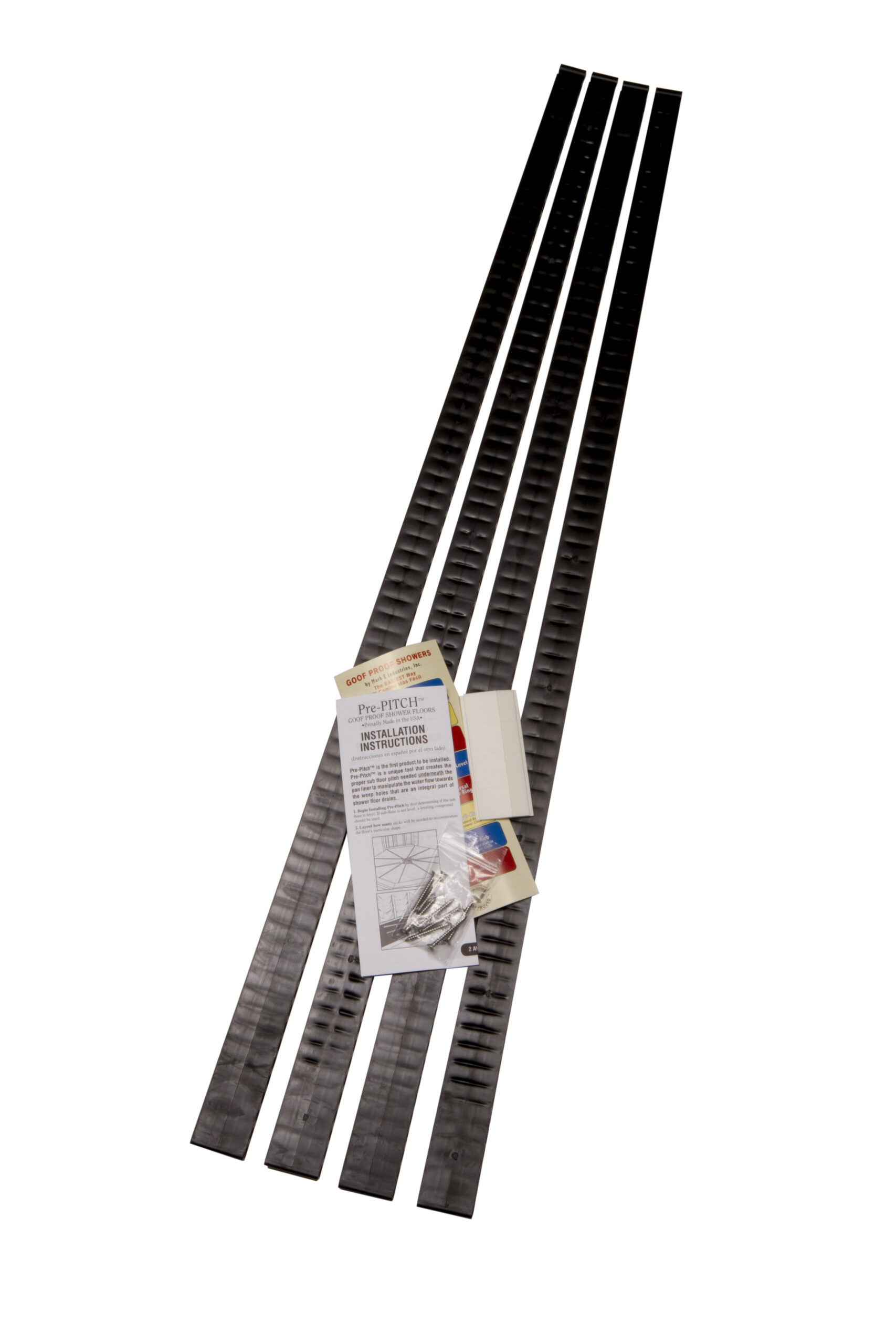

Pre-Pitch Extended sticks are for continuing the Standard Pre-Pitch stick length from 36” up to 72”. Can be used with 40 mil vinyl liners, roll-on liquid waterproofing and for creating thin-bed type foundations when using sheet membranes as water control. For larger shower sub floor areas with a centered drain or whenever the drain is further than 36 in. from any wall. Attaches to the 7/8” end of the Standard Pre-Pitch stick. Each stick measures 7/8 in. to 1 5/8 in. tapered x 36 in. length. Sold 4 per package. Screws, 2-sided tape and complete instructions included.
- Extends floating capabilities for larger shower areas
- Molded of high impact plastic with a reinforcing design that is lightweight and non-rotting; used on both wood and concrete subfloors
- Built-in pitch forms the perfect subfloor slope needed without possessing the necessary skills required
- Packaged with all the necessary hardware for quick and accurate installations
Available through dealers
In Stock
