Shower SeatGoof Proof Shower Seat
No. GPSS-3024 Goof Proof ® Shower Seat
View Specsheet PDF
View Installation Instructions
|Locate and Mark

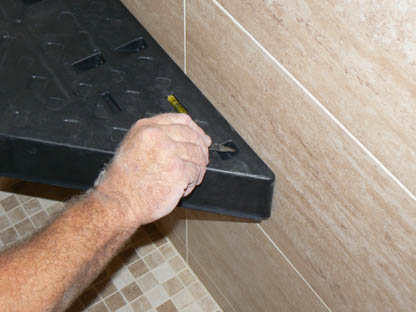

|Install with supplied Hardware

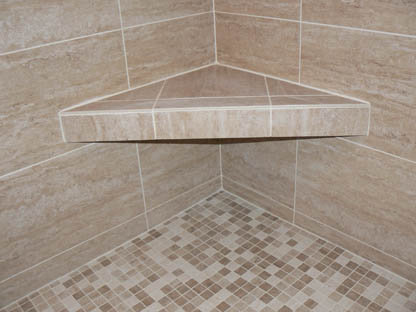

|Finish with Tile
For new or retrofit SHOWER installations
For new or retrofit installations

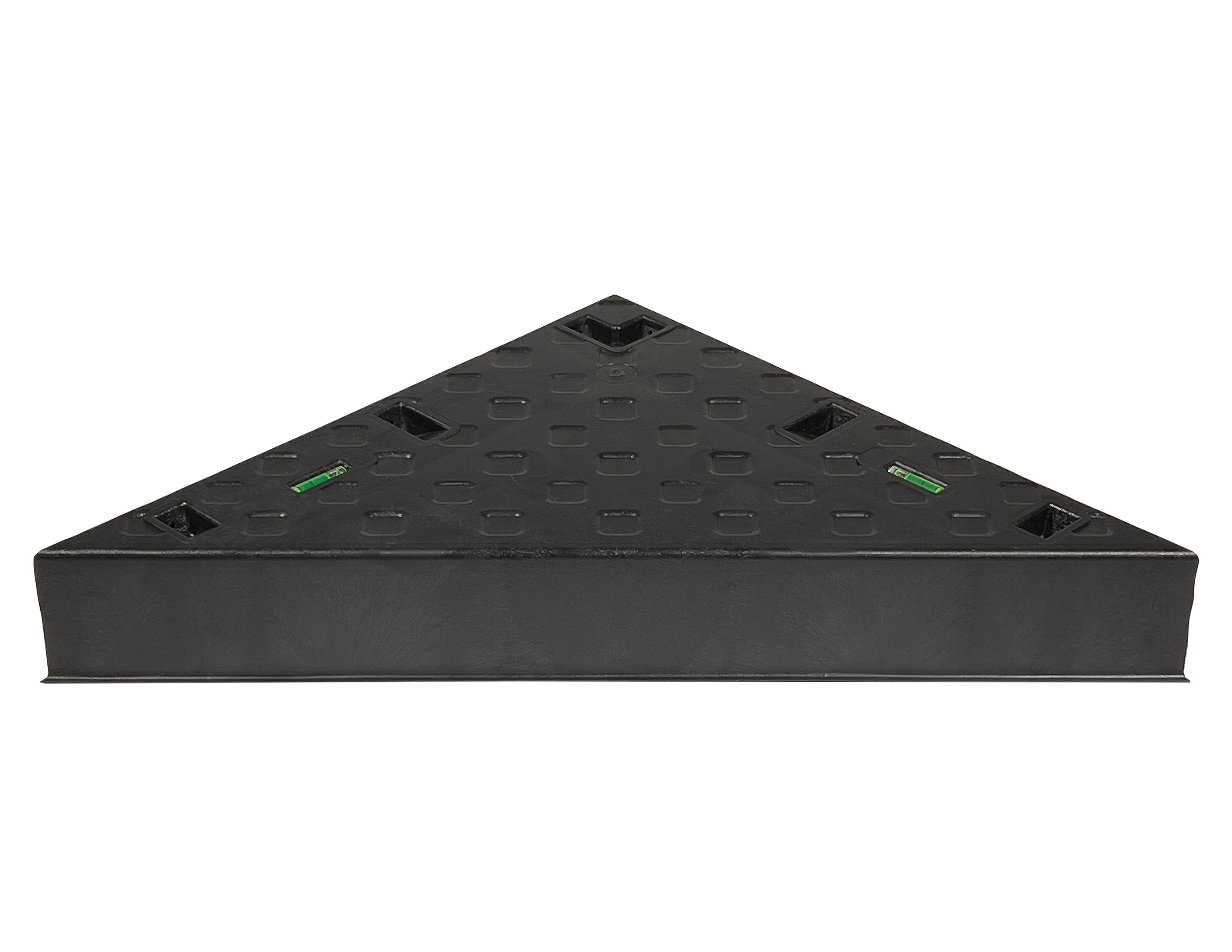

This Shower Seat is a heavy duty stay-in-place molded plastic form that is easily installed, and can be tiled the same day.

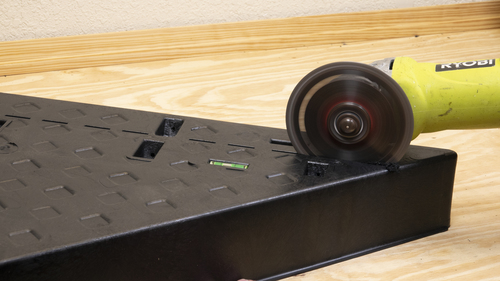

The Shower Seat is a standard 30" wide, and has guide marks on the top surface to make it easy to trim the seat to 24" wide.
The front face has a 3/16" wide tile support ledge for easier tile alignment and full tile support.
Two level vials are supplied to indicate the proper minimum water drainage slope of 1/4" per 12" run.

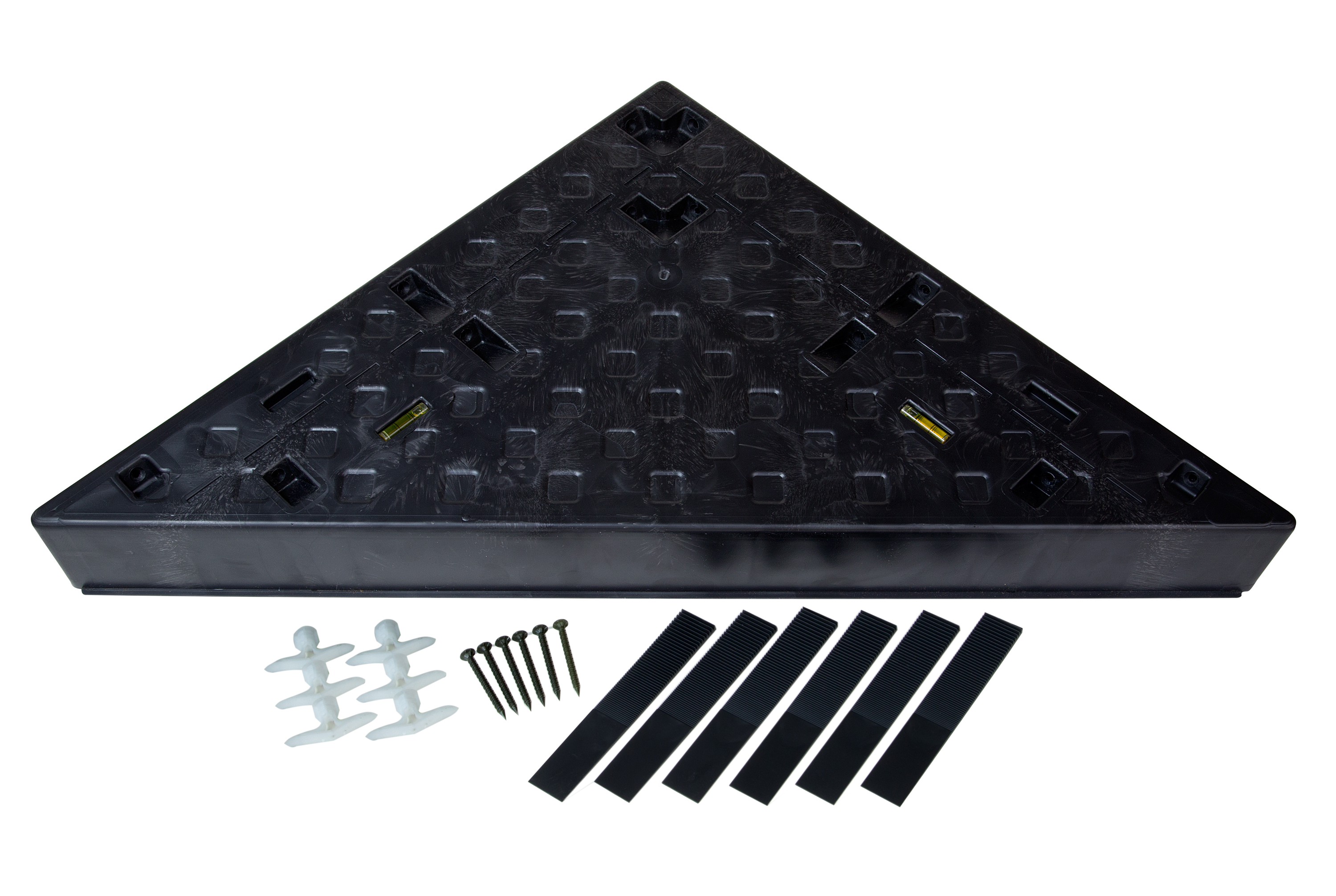

Capacity is 400 lbs. Screws, anchors and shims (to adjust for out of square walls, if necessary) and illustrated installation instructions are included. Weighs 71/2 lbs.

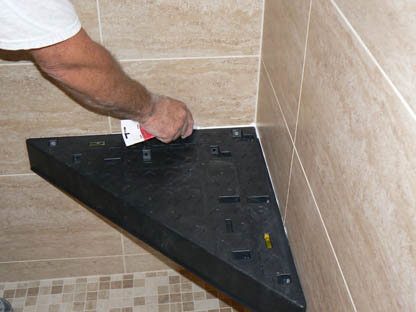

For retrofit installations, the seat is installed over the tile and secured with the screws into six plastic toggle anchors.
For new installations, the seat is installed over the wall boards and secured into blocking between the studs using six 21/4" long screws.
|Install 2x4 or
|Locate and mark
the position of the blocking
||Tile and grout
Please NOTE:Core material is a heavy duty plastic. Exposing any plastic to the high temperatures found in STEAM showers or saunas will cause warping. It is ONLY designed for showers.
You may contact us concerning questions about our shower products.
