Quick-Pitch

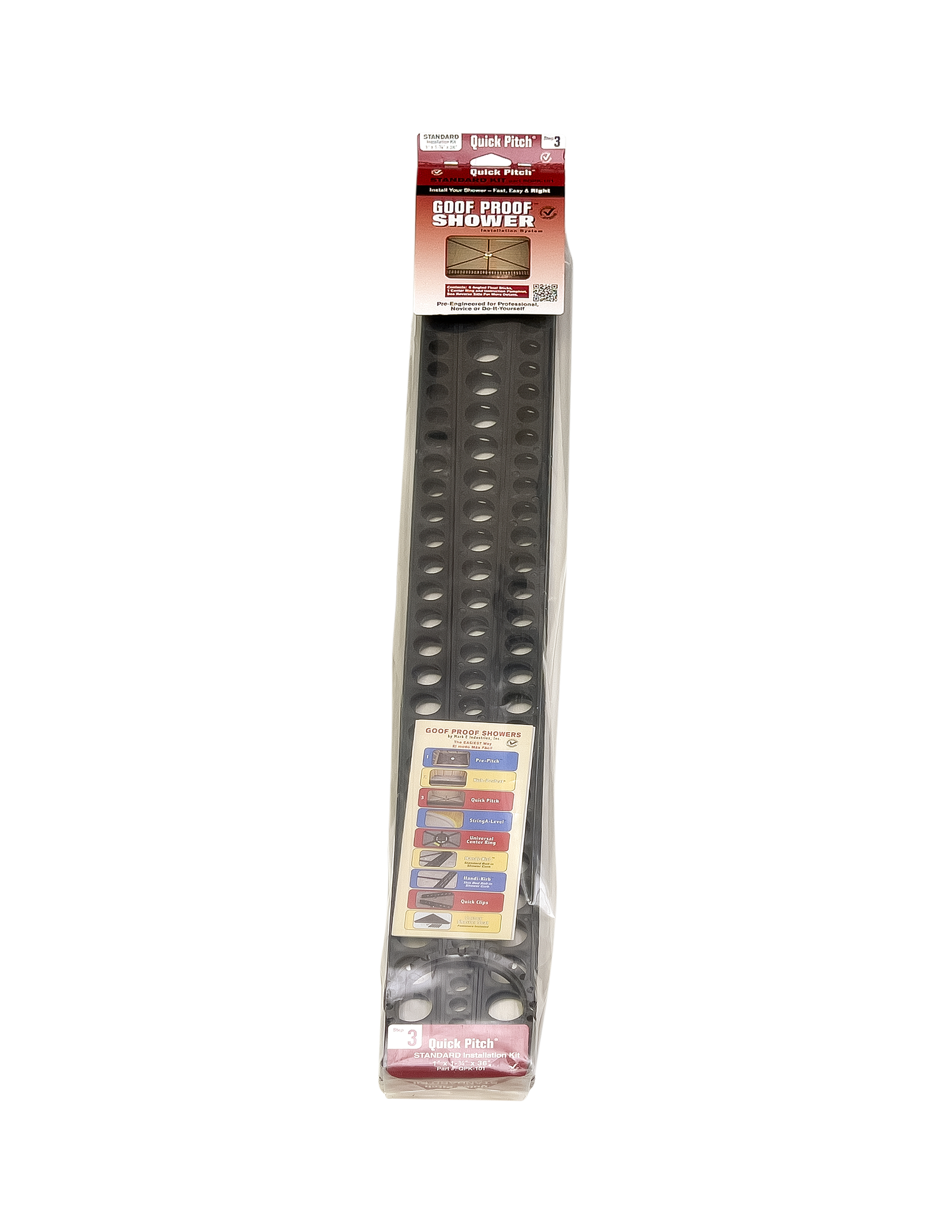

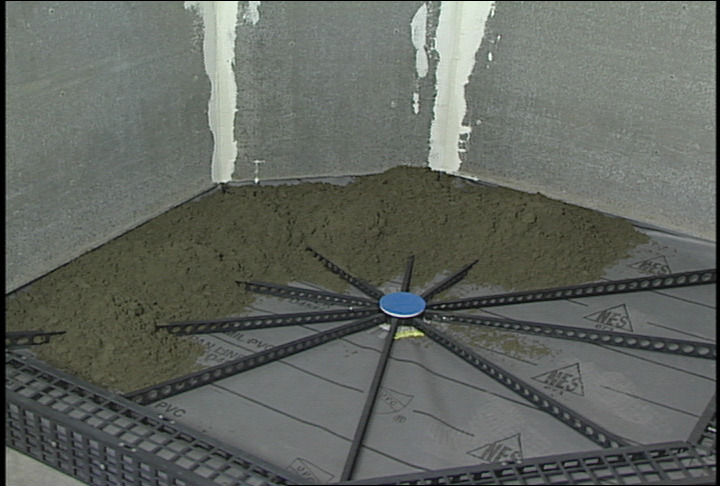

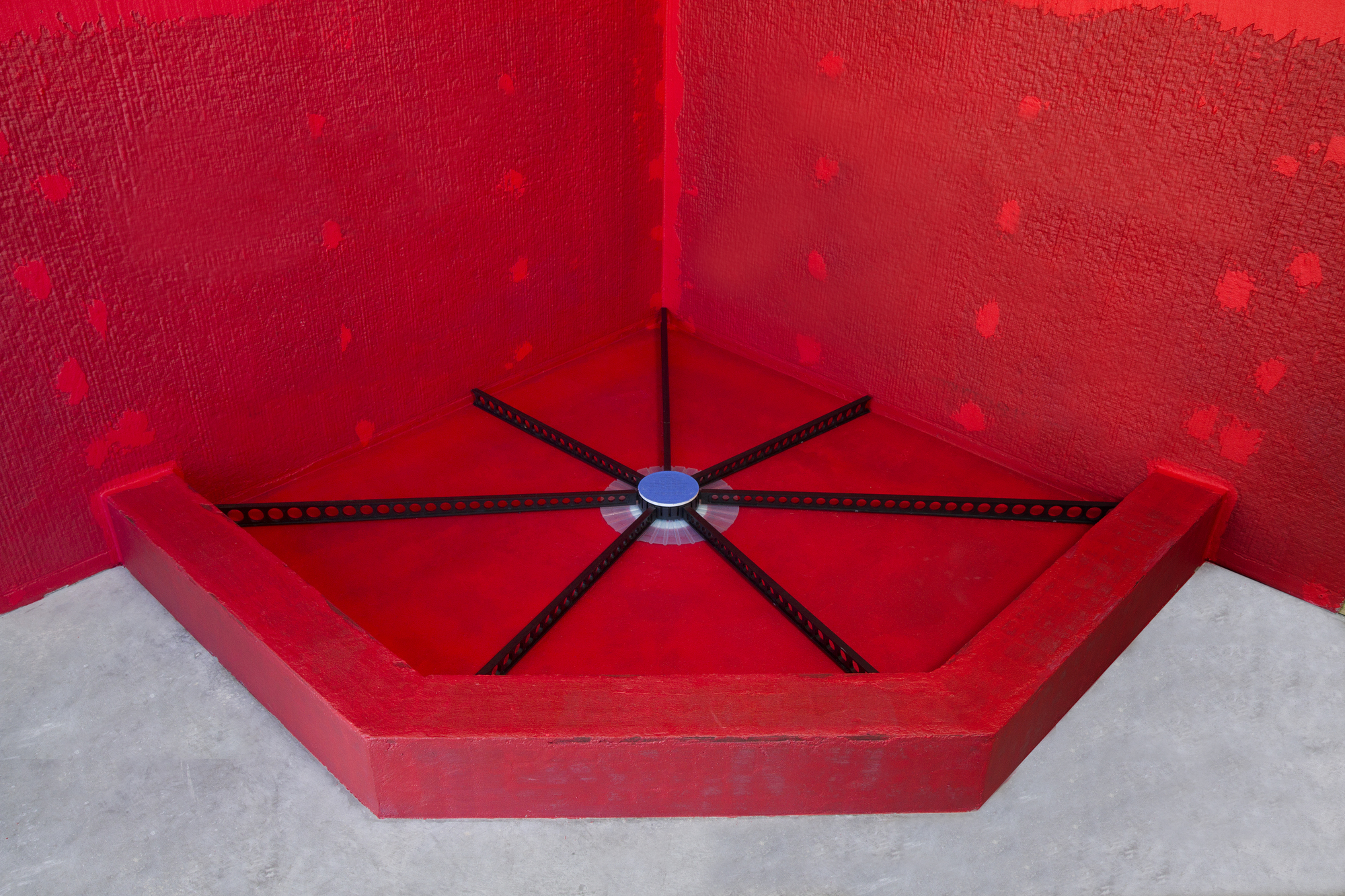

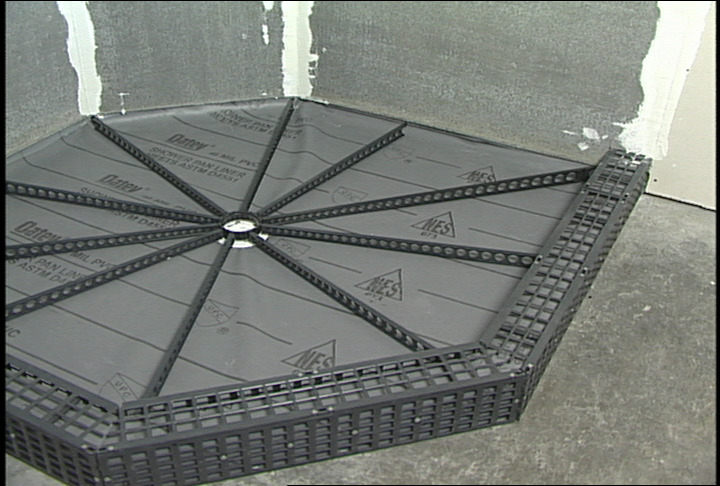

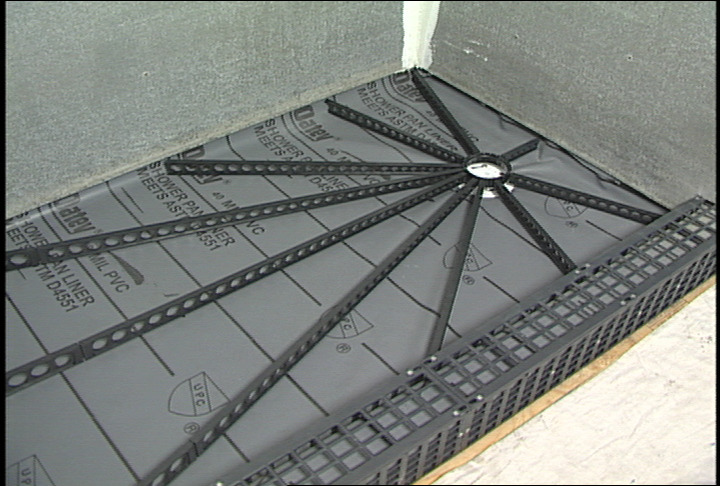

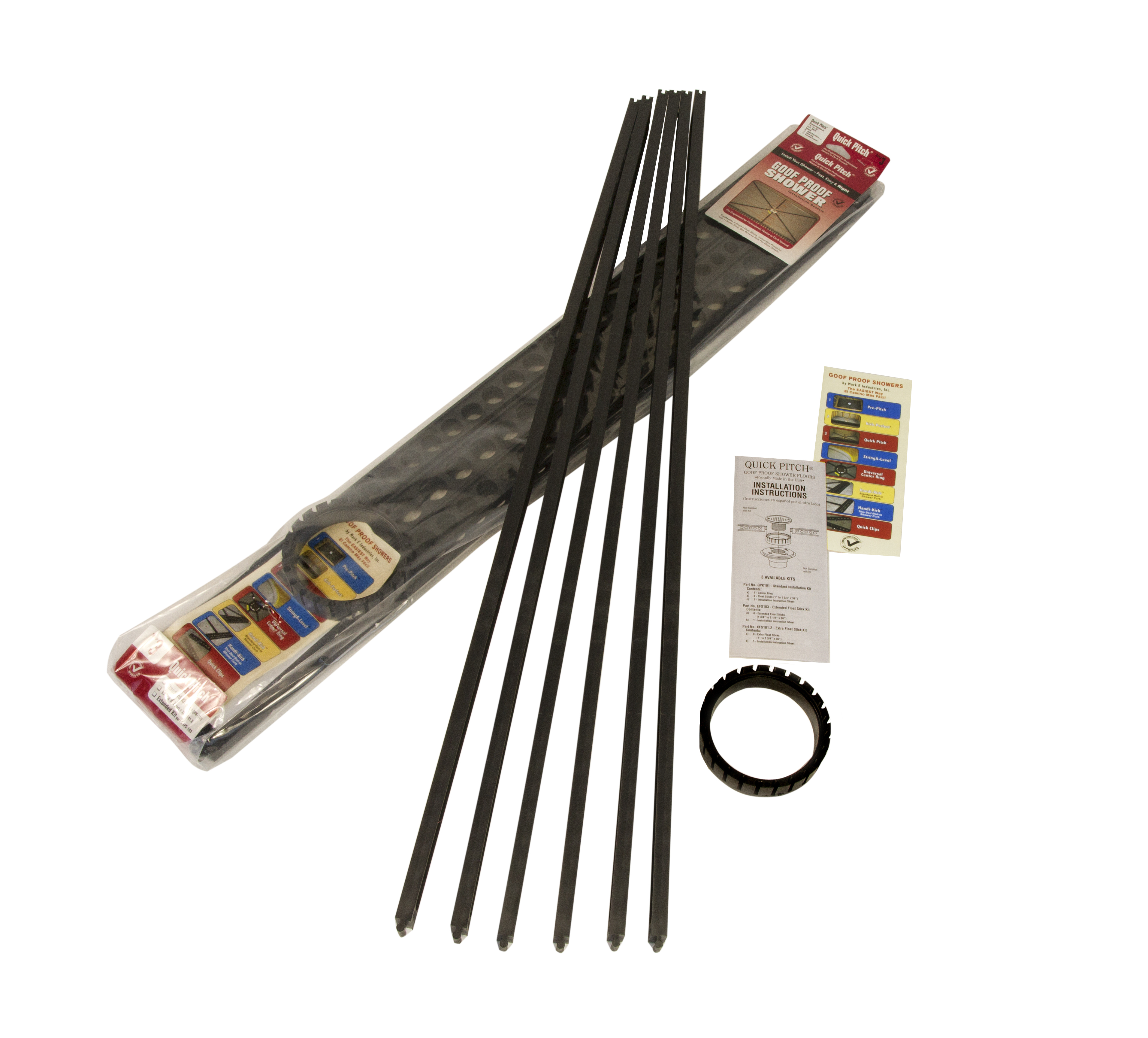

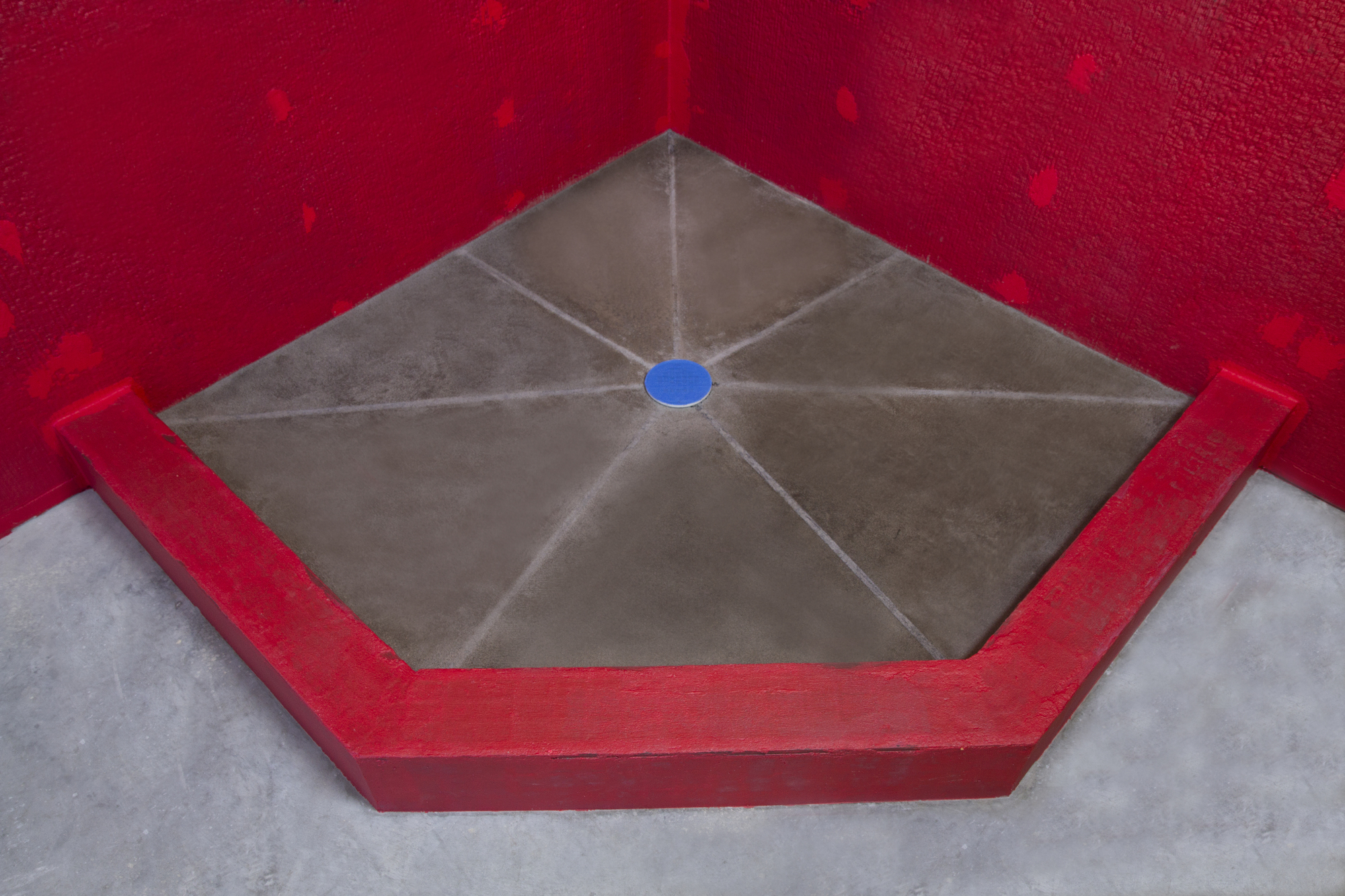

Quick Pitch creates shower floors with the recommended minimum slope of 1/4" per 12" run. With this reliable system, there is no chance for error in the sloping of shower floors prior to tiling. Quick Pitch begins with a Center Ring around the drain with tapered float stick guides to screed the mud to. This ensures the correct drainage slope necessary in standard shower areas with walls up to 36” in any direction. Extended sticks are available to continue slope out to 72”. Quick Pitch sticks can be used with all waterproofing methods. Each stick measures 1 in. to 1 3/4 in. tapered x 36 in. length. Sold 6 per package with 1 Center Ring and complete instructions included.
- Guides to create the proper pitch required for water to move on a tiled shower floor
- Molded of high impact plastic with a reinforcing design that is lightweight and non-rotting
- Built-in pitch forms the perfect slope needed without possessing the necessary skills required
- Extended sticks available for maintaining slope up to 72” away from the drain

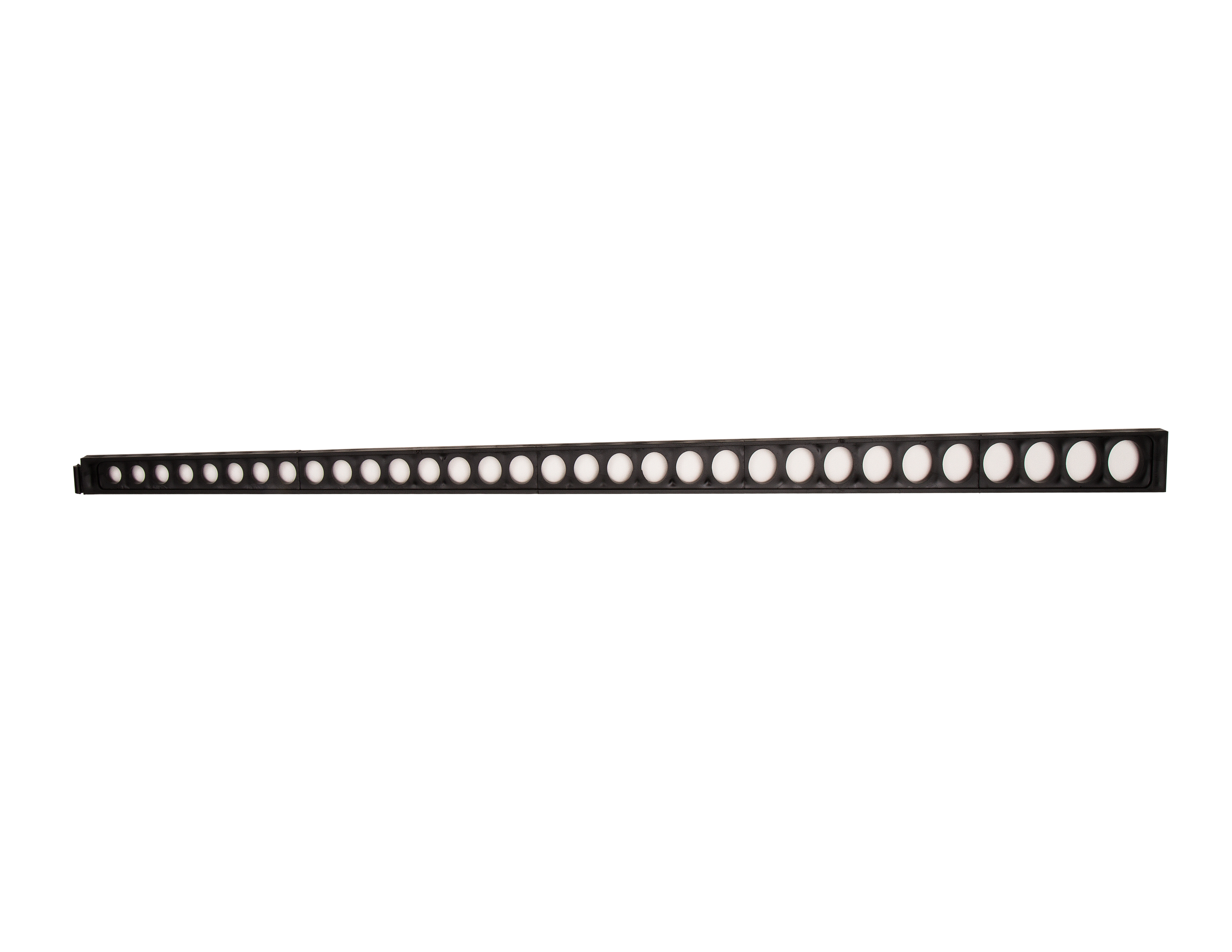

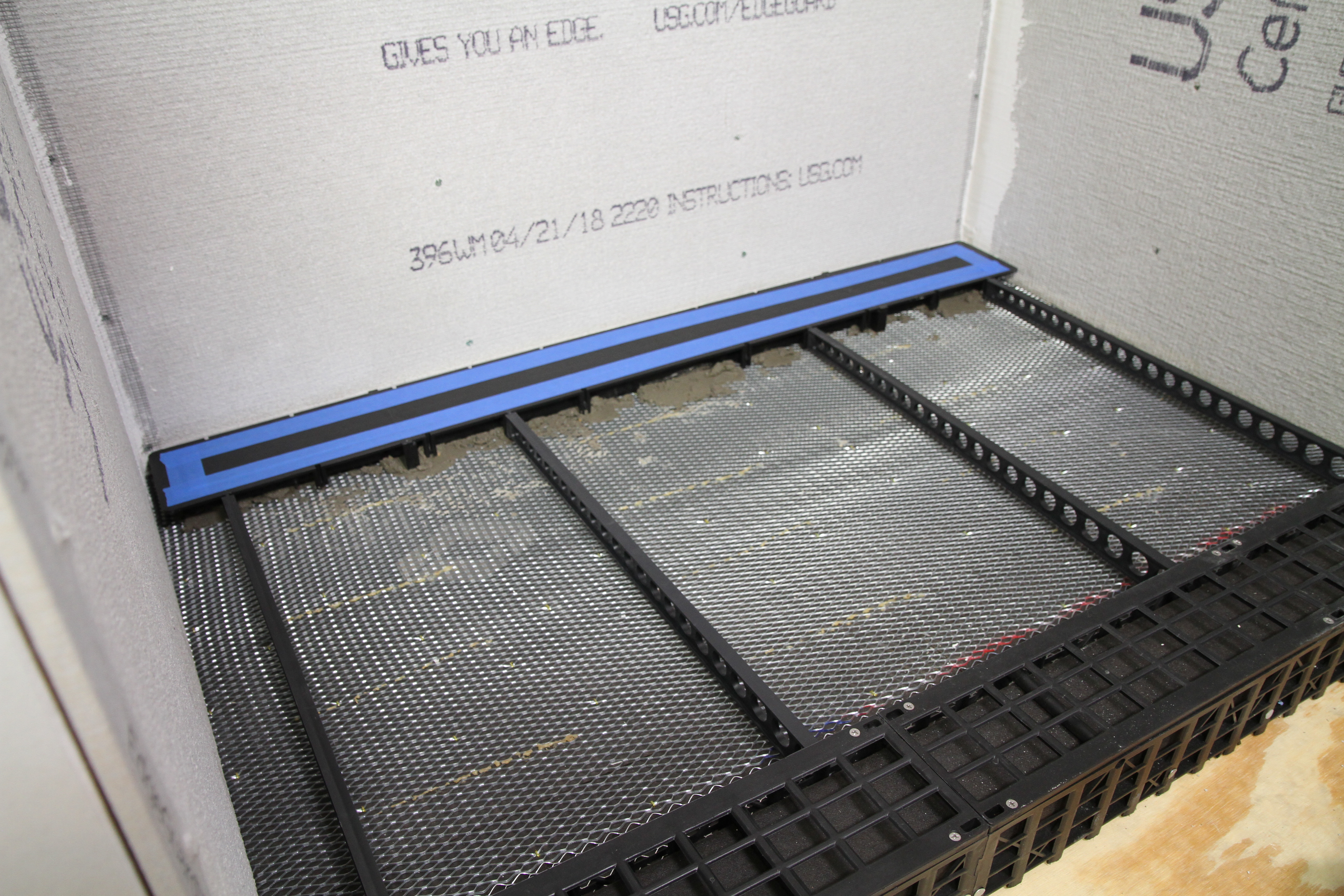

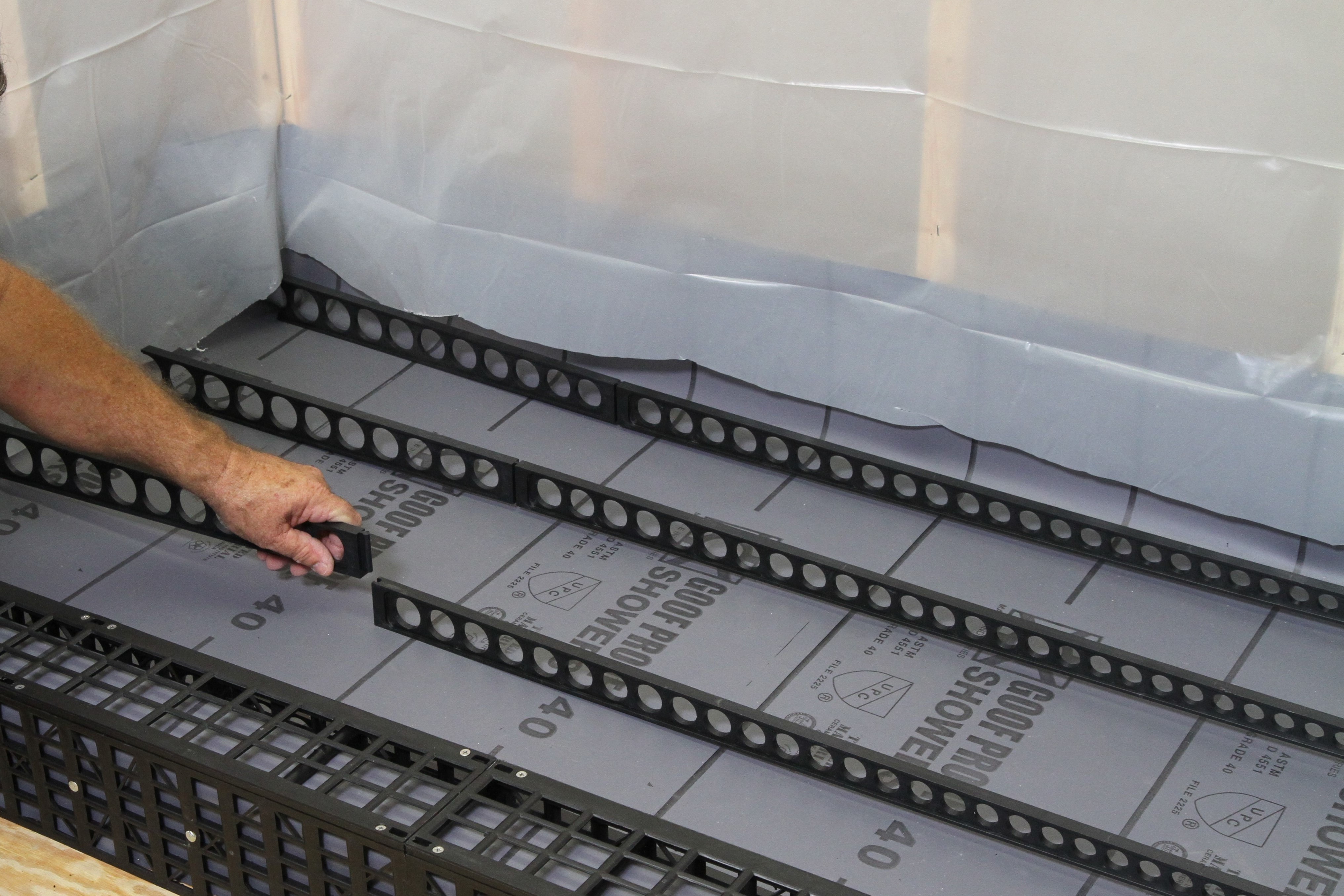

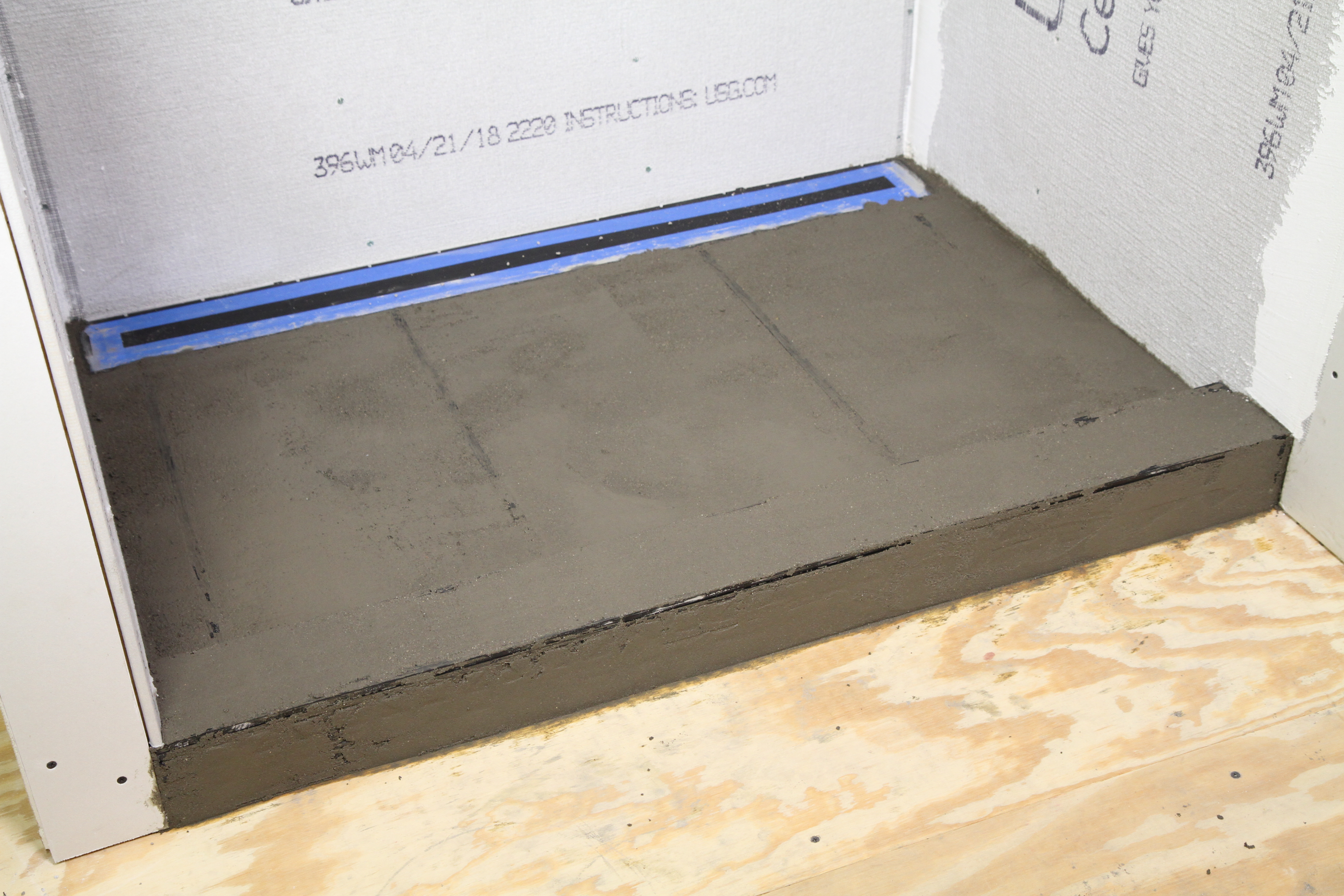

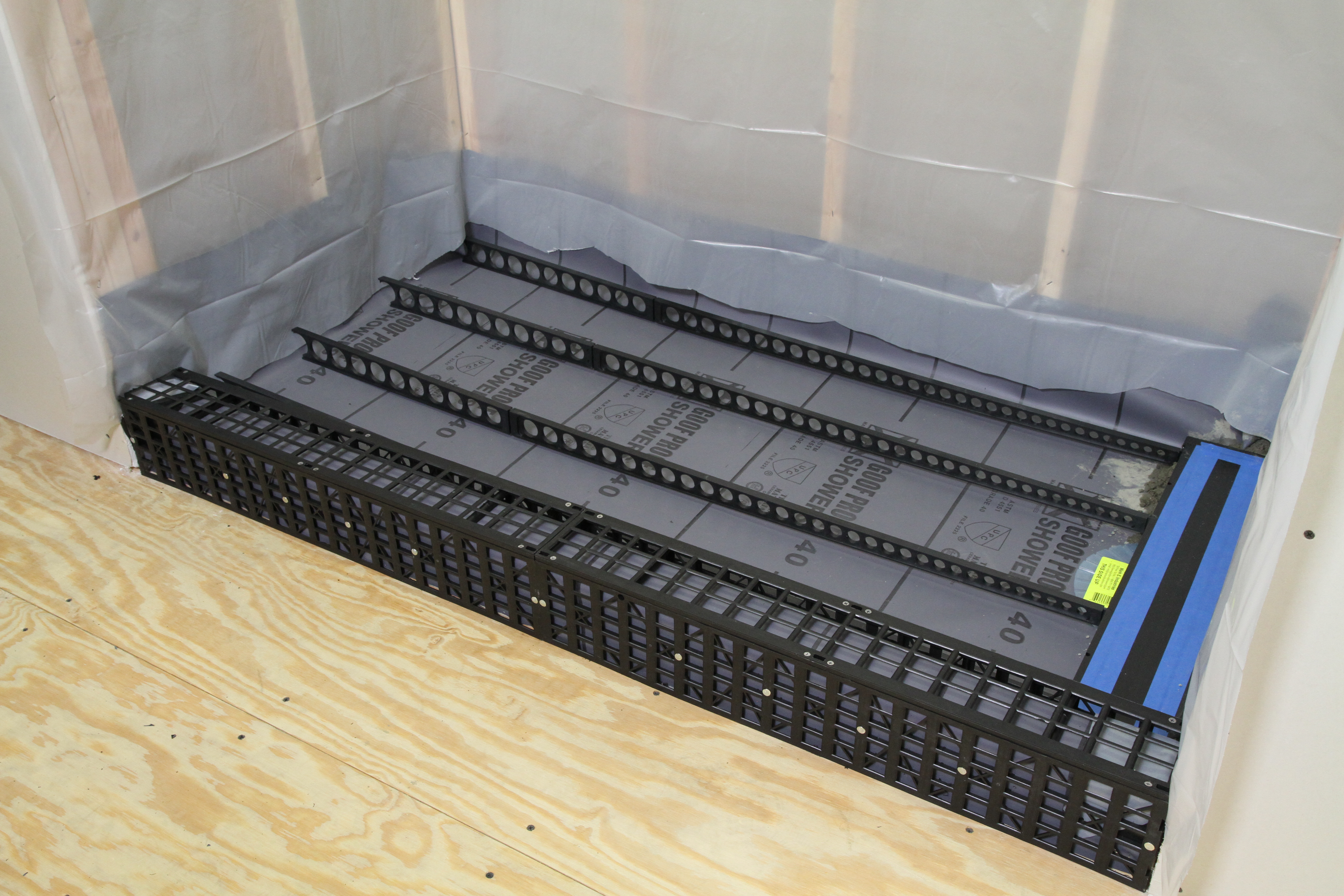

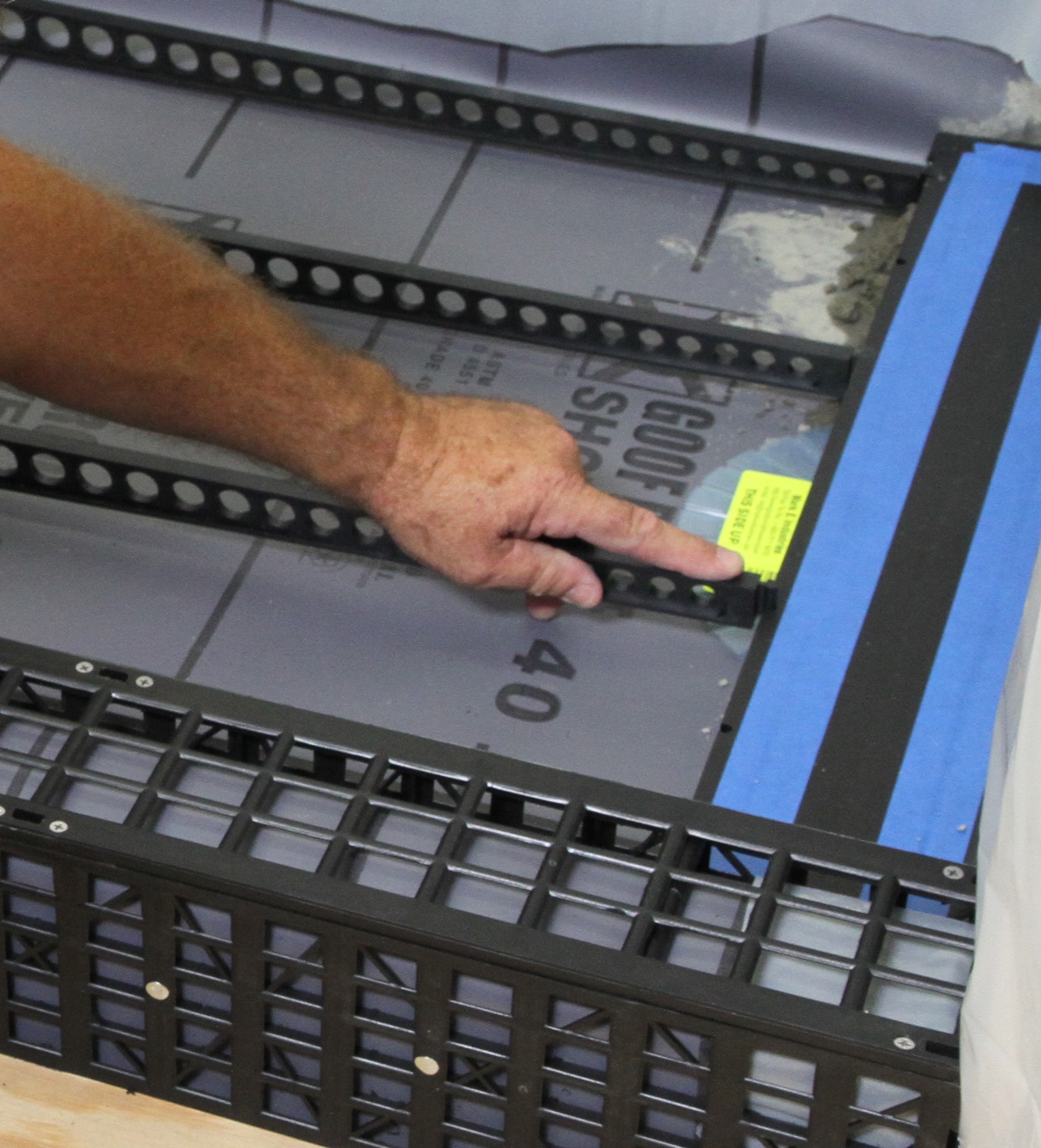

Extra Float Stick kit is an add-on to the Standard Kit when additional sticks are preferred or when needed for irregular, odd shaped shower layouts. XFS-101.2 is also used in place of the Standard Kit in linear drain type showers that will not use a Center Ring. All float sticks can be used with any waterproofing method. Extended sticks are available to continue the slope up to 72” from the drain. Each stick measures 1 in. to 1 3/4 in. tapered x 36 in. length. Sold 4 per package. Instructions included.

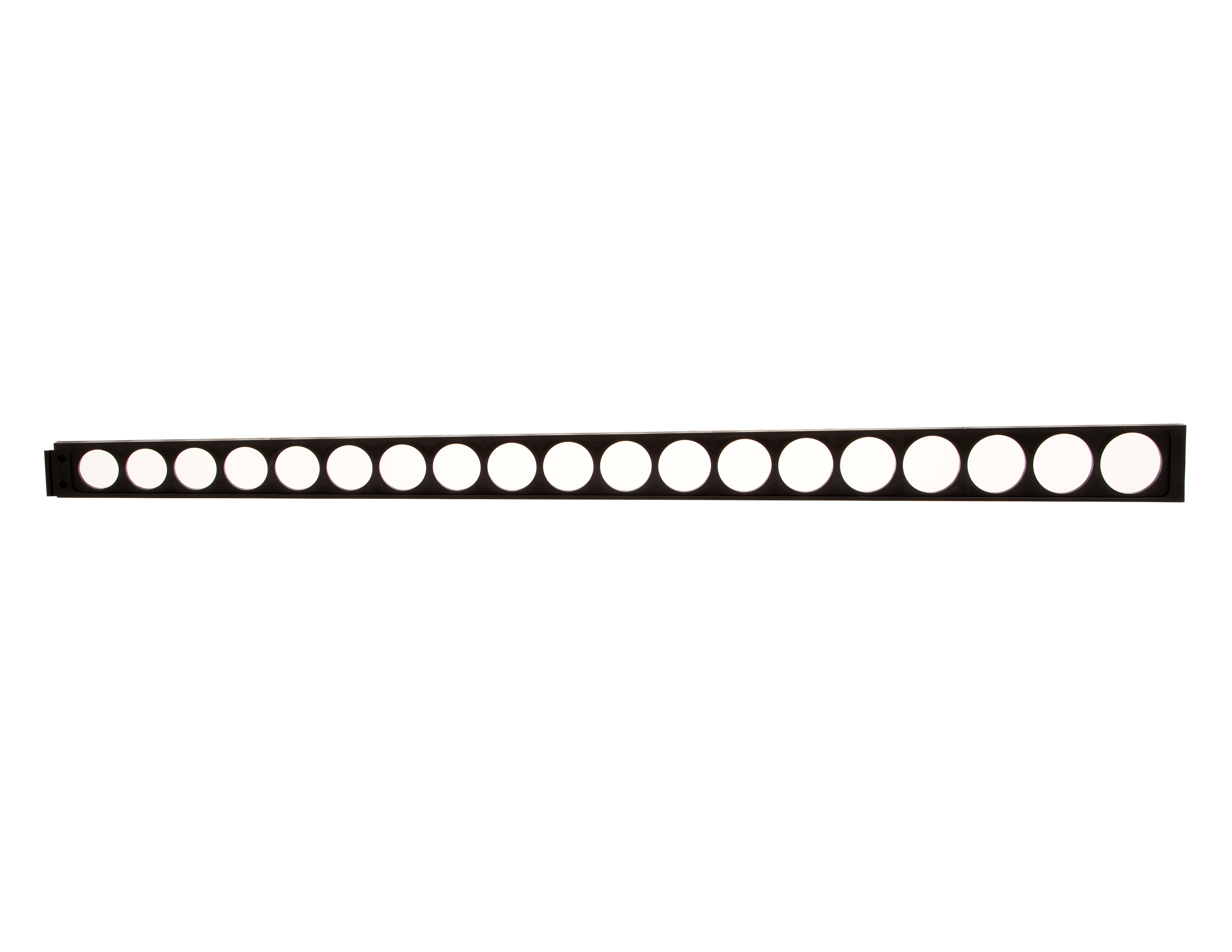

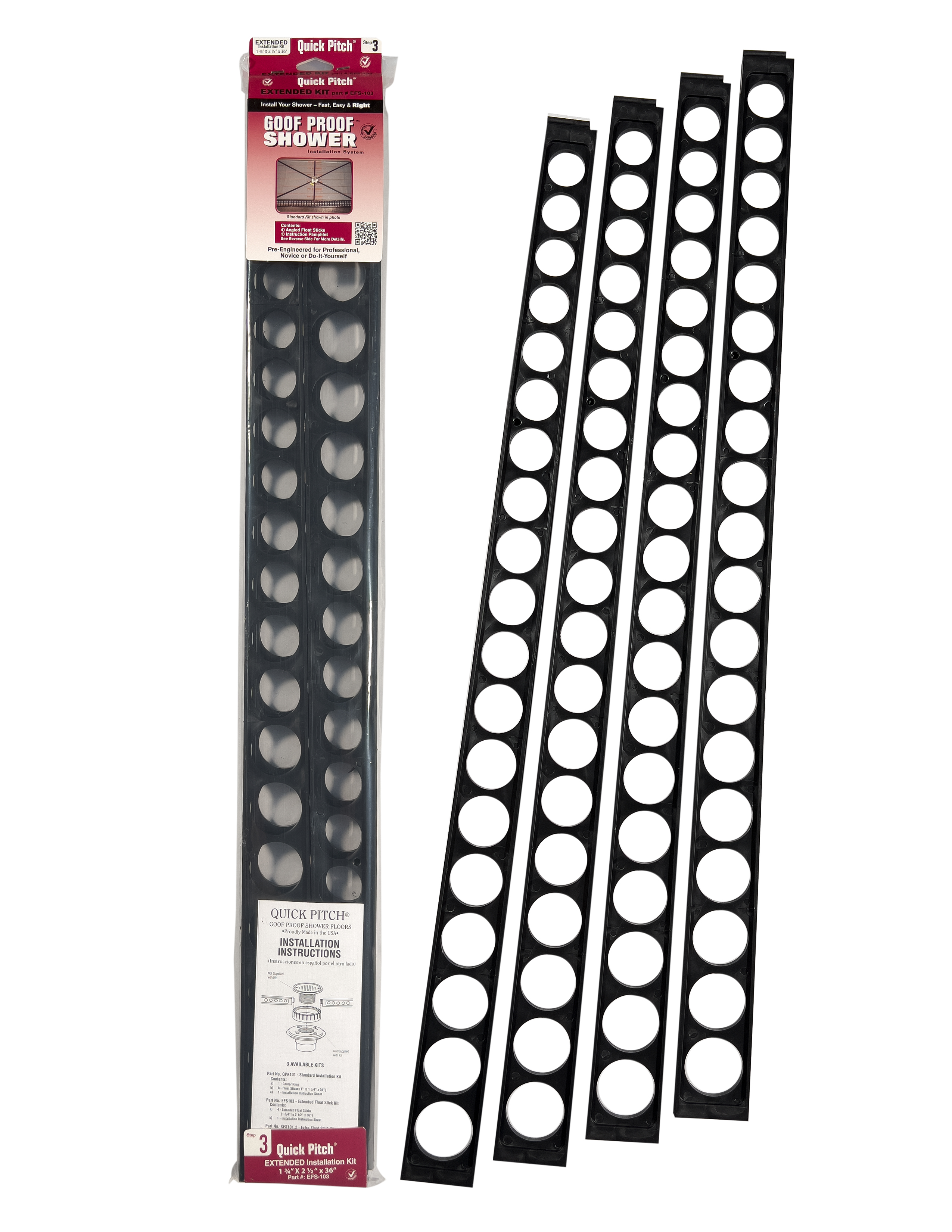

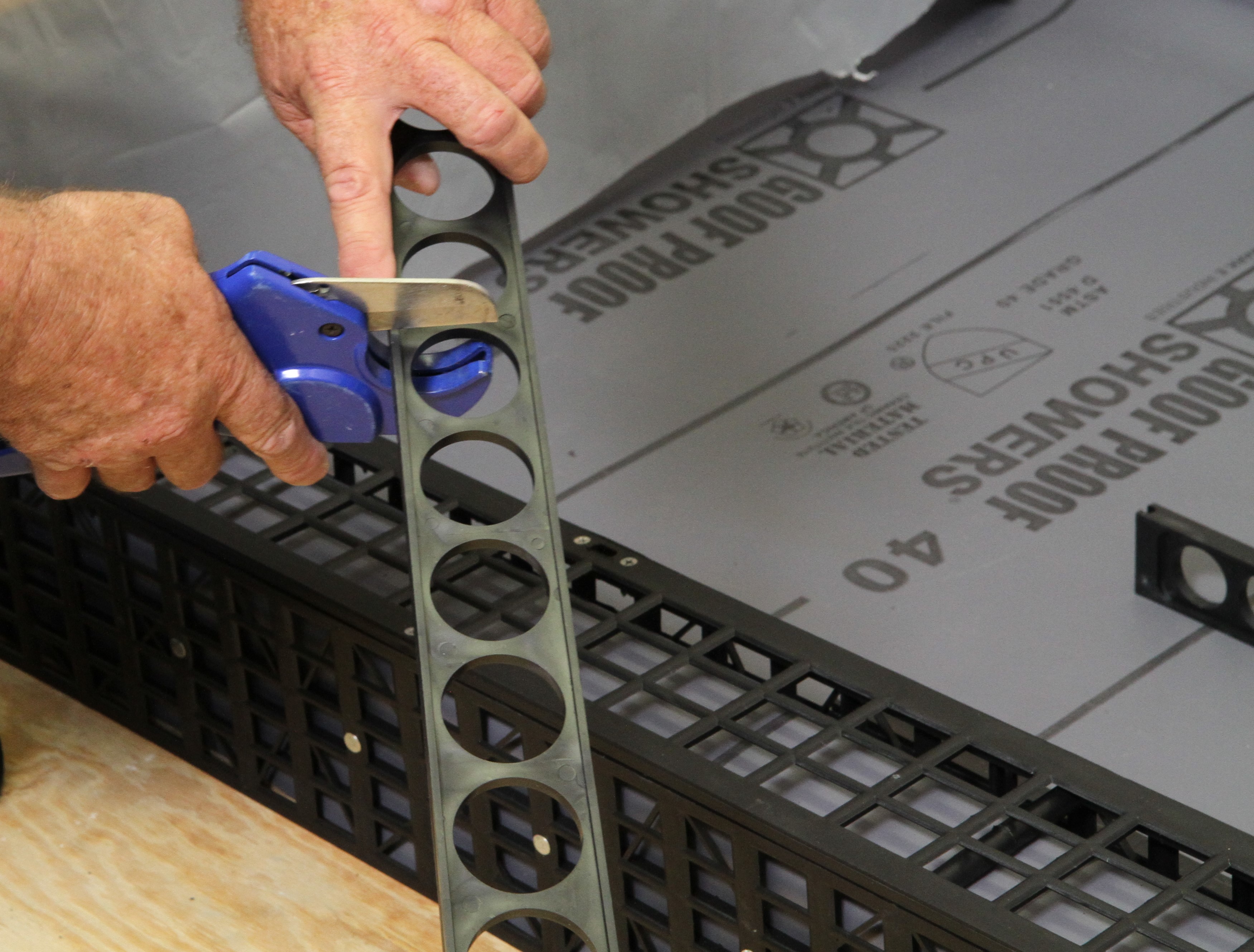

Extended Float Sticks engage an additional 36” of screeding guide surface to the end of the Standard 36” stick length. EFS-103 sticks add a seamless continuation of slope up to 72” from the drain location. Easily cut to lengths needed. Each stick measures 1 3/4 in. to 2 1/2 in. tapered x 36 in. length. Sold 4 per package. Instructions included.
- Built-in pitch to form the perfect slope needed without possessing the necessary skills required
- Guides to encourage water to move efficiently on a shower floor surface
- Molded of high impact plastic with a reinforcing design that is lightweight and non-rotting
